Causticizing System

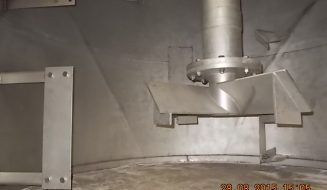

CAUSTICIZERS

Heavy duty agitators are generally used with the tank being heavy mild steel plate with a good lining. The agitator’s shaft & impellors will be of stainless steel construction.

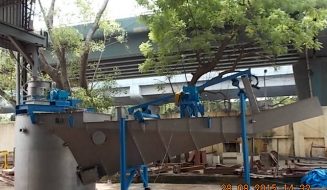

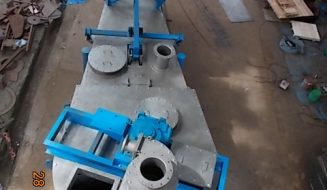

LIME SLAKERS

EIMCO-K.C.P. Slakers and Slaker-Classifiers for lime are available in different sizes depending on the application and requirements. Slaker-Classifier combines the slaking action, classifying and grit removal in a single unit. The design provides adequate retention time for optimum slaking efficiency.

GREEN LIQUOR CLARIFIER

EIMCO-K.C.P. Green Liquor clarifier is designed to give better effluent clarification than the older multiple tray design at a lower installed cost. This unit can also be furnished with provisions for clarified Green Liquor Storage in same unit, thereby eliminating the extra tankage for green liquor storage capacity.

DREGS MIXER

Dregs Mixer is also available which operate on the same mechanism.

DREGS FILTER

Dregs Filter is also available which operate on the same mechanism.

WHITE LIQUOR CLARIFIER

A unit of tray type is used for White Liquor Clarification. Since maximum underflow density & clear white Liquor are the primary objectives, the unit type clarifier has obvious advantages. The peripheral overflow launder will insure minimum turbidity in the clarified white liquor & storage of solids to insure maximum underflow density where space is at a premium, a two of four compartment white liquor can be used.

LIME MUD WASHER

The Under flow from the white liquor clarifier must be washed to recover NA 2O values in it. Two stages washing is usually employed in a washer type tray thickener.

LIME MUD FILTER

EIMCO-K.C.P. lime mud filter is used to dewater the mud to the minimum moisture content & if necessary provide some additional washing of soda removal prior to feeding the mud into the kiln. The filter can be operated with complete cake discharge or as a Precoat using a heel of mud on the drum as a Precoat.
